Walter

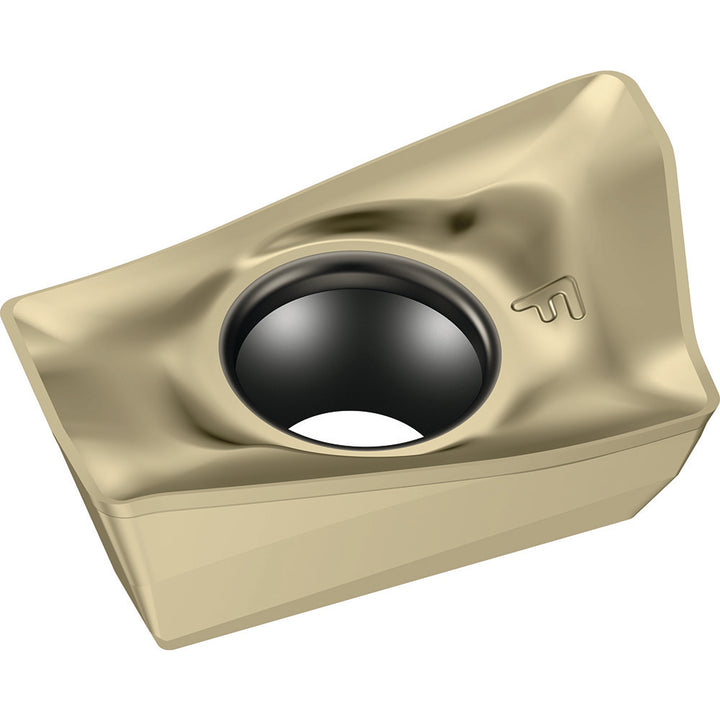

ADMT160608R-D56 WKK25G Carbide Insert, Grade WKK25G, TiAlN/Al2O3/(ZrN) - Walter 8284876
MFR# 8284876ISO/ANSI# ADMT160608R-D56 WKK25GCat# ADMT160608R-D56 WKK25GSeries ADMT
$29.81List $38.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeWKK25G
MaterialCarbide
CoatingTiAlN/Al2O3/(ZrN)
Description
The Walter 8284876 is a ADMT160608R-D56 WKK25G carbide indexable insert, grade WKK25G, TiAlN/Al2O3/(ZrN) coated. Suited for cast iron.
Specifications
Chip breakerD56
Coating finishTiAlN/Al2O3/(ZrN)
Coating processPVD
Corner radius0.0315
Cutting directionRight Hand
Cutting edge effective length0.6890
Inscribed circle0.4252
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size160608
Insert size code16
Insert styleADMT
Iso codeADMT160608R-D56 WKK25G
Length0.6890
Manufacturers catalog numberADMT160608R-D56 WKK25G
Manufacturer gradeWKK25G
Maximum depth of cut0.6890
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle15.000
Single or double sided insertSingle
Thickness0.2421
Width0.4251
