Walter

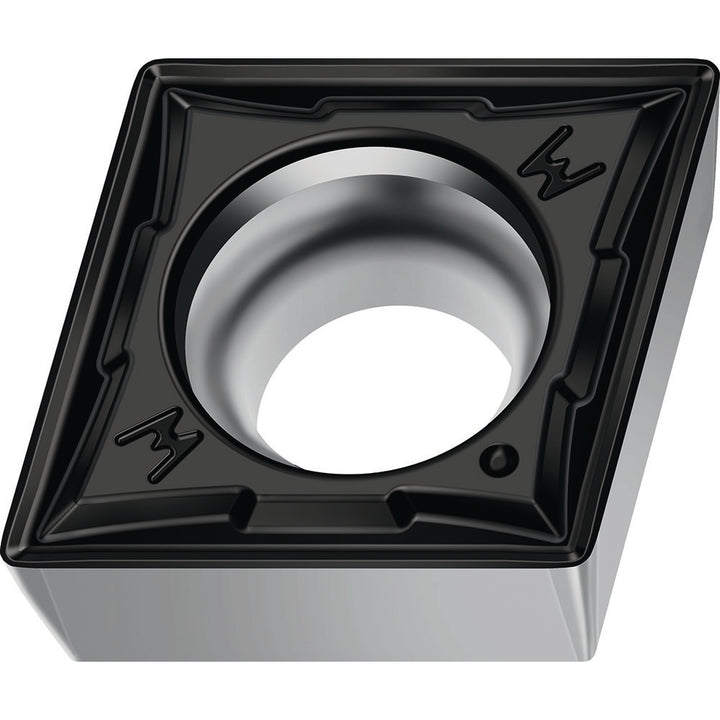

Rhombic 80 Carbide Insert, Grade WKK10S, TiCN+Al2O3+(TiCN) - Walter 8296292
MFR# 8296292ISO/ANSI# CCMT09T308Cat# CCMT09T308-MW4 WKK10SSeries CCMT
$17.19List $22.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRhombic 80
GradeWKK10S
MaterialCarbide
CoatingTiCN+Al2O3+(TiCN)
Description
The Walter 8296292 is a carbide indexable insert, grade WKK10S, TiCN+Al2O3+(TiCN) coated.
Specifications
Ansi insert codeCCMT3(2.5)2
Ansi size code3(2.5)2
Chip breakerMW4
Chip breaker operationWiper - Medium Machining
Clearance codeC
Coating finishTiCN+Al2O3+(TiCN)
Corner radius (mm)0.80
Grade characteristicsCast Iron (K) - High Wear-Resistance
Included angle80.00
Inscribed circle (mm)9.53
Insert handNeutral
Insert holding methodScrew
Insert length (mm)9.67
Insert materialCarbide
Insert shapeRhombic 80
Insert size code09
Insert styleCCMT
Insert thickness3.97
Iso insert codeCCMT09T308
Iso size code09T308
Manufacturers catalog numberCCMT09T308-MW4 WKK10S
Manufacturer gradeWKK10S
Maximum depth of cut (mm)4.00
Number of cutting edges2
Relief angle7.000
Side clearancePositive
Tolerance codeM
Wiper edgeYes
