Walter-Prototyp
0.1024" 3-Flute Solid Carbide Square End Mill - Walter-Prototyp 5082195
MFR# 5082195
$39.28List $50.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
Description

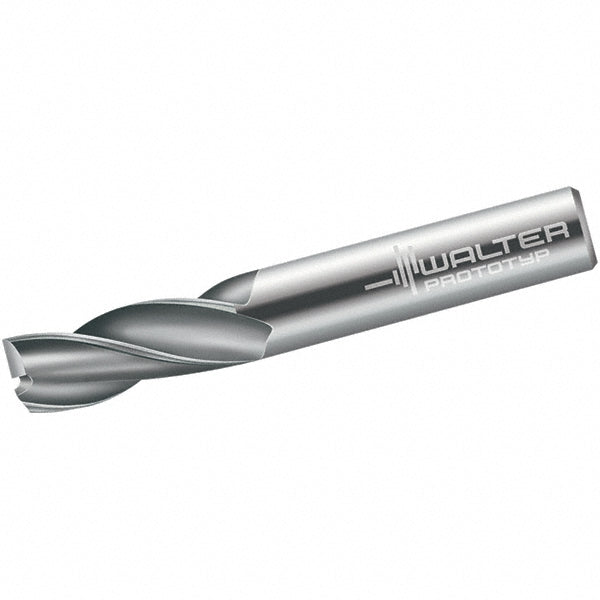

The Walter-Prototyp 5082195 is a 0.1024 3-flute Solid Carbide (A1007) square end mill. 0.1181 length of cut.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1181
Length of cut range0.1000 - 0.2000
Length typeRegular
Material gradeA1007
Mill diameter0.1024
Mill diameter toleranceh10
Number of flutes3
Overall length (mm)38
Overall length tolerance+2.00 mm
Shank diameter0.1181
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
