Walter-Prototyp

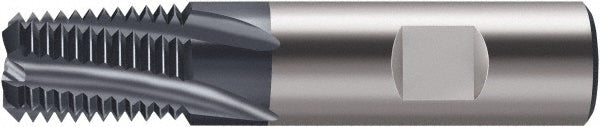

Helical Flute Thread Mills - Walter-Prototyp 5115564
MFR# 5115564
$471.41List $584.28
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/8-27
CoatingTiCN
Description
The Walter-Prototyp 5115564 helical flute thread mills.
Specifications
Coating finishTiCN
Coolant throughNo
Cutting diameter0.3110
Cutting diameter tolerance (mm)-0.30
Flute directionRight Hand
Length of cut0.4528
MaterialSolid Carbide
Minimum nominal diameter in0.1250
Number of flutes3
Overall length2.2835
Shank diameter (mm)8.00
Teeth per inch27
Thread size in1/8-27
Thread standardNPT
Thread typeInternal
