Walter-Prototyp

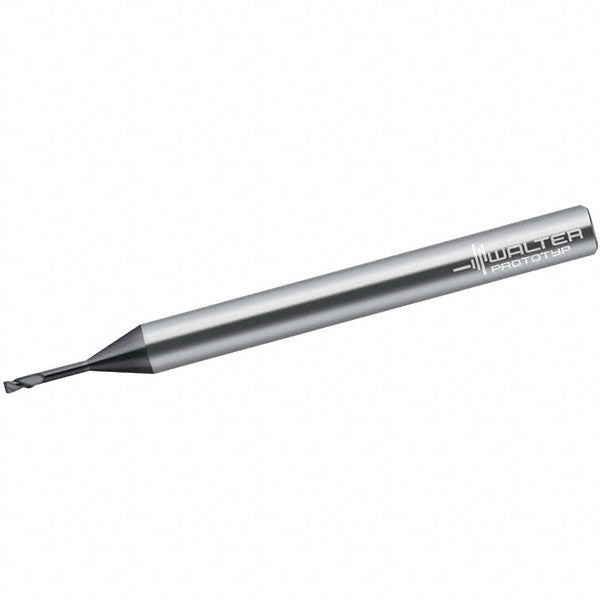

0.0984" 2-Flute Solid Carbide Corner Radius End Mill, TiAlN - Walter-Prototyp 5150527
MFR# 5150527Series H4044918
$123.25List $158.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description
The Walter-Prototyp 5150527 is a 0.0984 2-flute Solid Carbide (A1007) corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, non-ferrous metal. Series H4044918.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Corner radius0.0098
Corner radius tolerance+0.00500 to -0.00500 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleMedium
Length of cut1.6250
Length typeLong
Material applicationSteel; Non-Ferrous Metal
Material gradeA1007
Material removal typeRoughing & Finishing
Mill diameter0.0984
Mill diameter toleranceh7
Neck diameter0.0972
Number of flutes2
Overall length (mm)60.00
Overall length tolerance+2.0000 mm
PitchCoarse
Primary workpiece materialSteel; Non-Ferrous Metal
Reach length0.4921
Secondary workpiece materialNon-Ferrous Metal
Shank diameter (mm)3.00
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
