Walter-Prototyp
1/4-20 UNC Powdered Metal Tap, TiCN - Walter-Prototyp 5348376
MFR# 5348376Series A2240876
$113.68List $145.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTiCN
Description

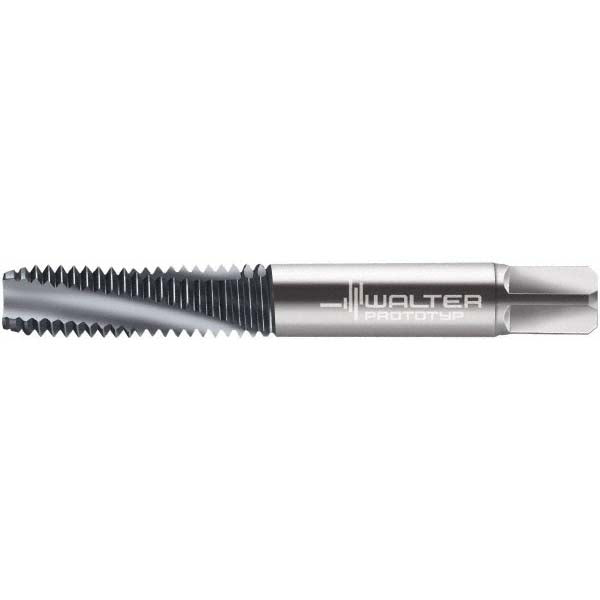

The Walter-Prototyp 5348376 is a 1/4-20 UNC Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle10
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Cobalt Alloy; Iron Alloy; Nickel Alloy; Non-Ferrous Metal; Steel; Titanium; Titanium Alloy
Number of flutes3
Overall length in2-1/2
OversizeNo
Primary workpiece materialSteel; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.2550
Square size0.1910
Tapping depth1.5960
Threads per inch20
Thread directionRight Hand
Thread length0.7870
Thread size in1/4-20
Thread standardUNC
