Walter-Prototyp

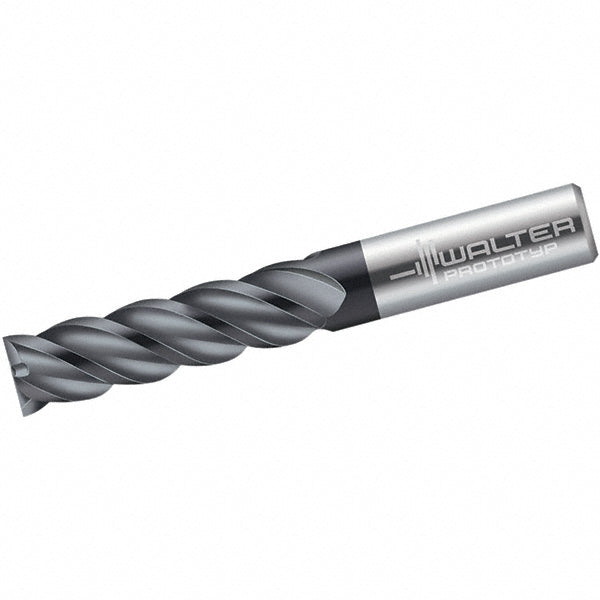

3/4" 5-Flute Solid Carbide Square End Mill, TiAlN - Walter-Prototyp 5543418

MFR# 5543418Series AH3023418

$684.61List $878.05 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingTiAlN

Description

The Walter-Prototyp 5543418 is a 3/4 5-flute Solid Carbide (A1007) square end mill with a TiAlN finish for longer tool life. Suited for steel. 2-1/4 length of cut, 5 overall length. Series AH3023418.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in2-1/4

Length of cut range2.0000+

Length typeLong

Material gradeA1007

Mill diameter in3/4

Mill diameter toleranceh10

Number of flutes5

Overall length in5

Overall length tolerance+2.00 mm

Primary workpiece materialSteel

Reach length2.25

Secondary workpiece materialStainless Steel

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Tir maximum (mm)0.02

Variable helixNo

Variable indexNo
