Walter-Prototyp

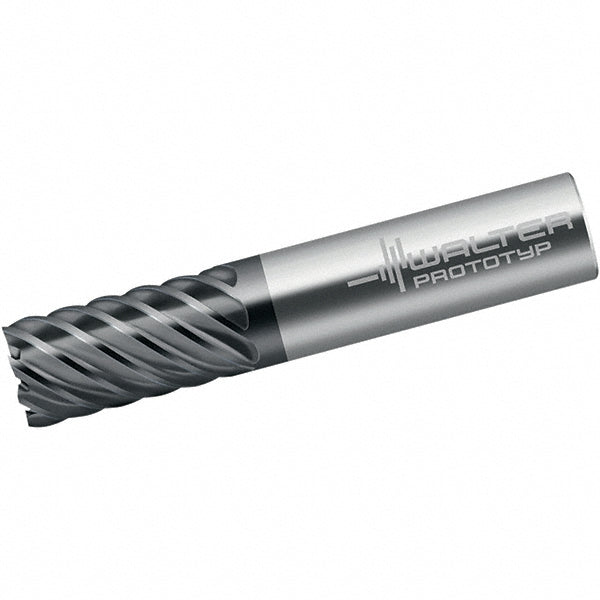

1/8" 4-Flute Solid Carbide Square End Mill, TiAlN - Walter-Prototyp 5543425

MFR# 5543425

$74.18List $95.15 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Walter-Prototyp 5543425 is a 1/8 4-flute Solid Carbide (A1007) square end mill with a TiAlN finish for longer tool life. 1/2 length of cut, 2-1/2 overall length.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle50

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Length typeStub

Material gradeA1007

Mill diameter in1/8

Mill diameter toleranceh10

Number of flutes4

Overall length in2-1/2

Overall length tolerance+2.00 mm

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Tir maximum (mm)0.01

Variable helixNo

Variable indexNo
