Walter-Prototyp

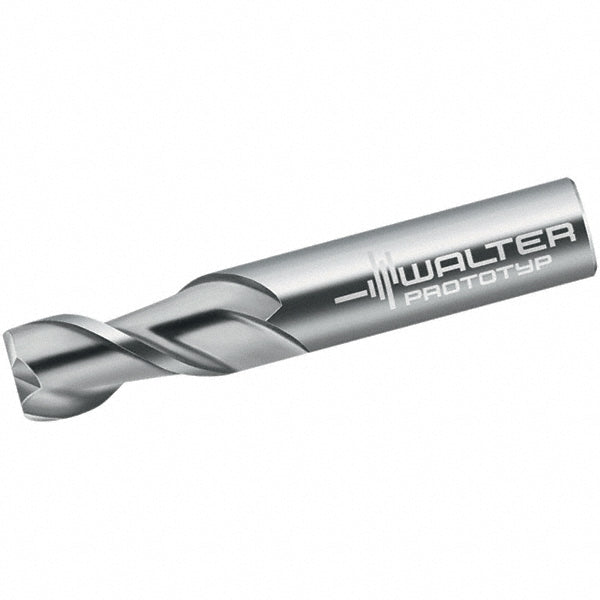

1/2" 2-Flute Solid Carbide Square End Mill - Walter-Prototyp 5543450
MFR# 5543450Series AH602511
$146.76List $184.95
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Walter-Prototyp 5543450 is a 1/2 2-flute Solid Carbide (A1007) square end mill. 1 length of cut, 3-1/2 overall length. Series AH602511.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeA1007
Mill diameter in1/2
Mill diameter toleranceh10
Number of flutes2
Overall length in3-1/2
Overall length tolerance+2.00 mm
Reach length1
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Tir maximum (mm)0.02
Variable helixNo
Variable indexNo
