Walter-Prototyp

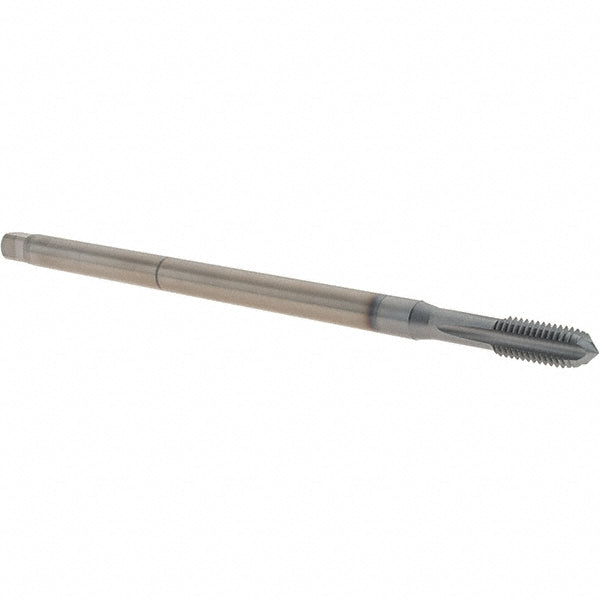

M10x1.5 Metric Powdered Metal Standard Hand Tap, TiCN - Walter-Prototyp 5603127
MFR# 5603127Series E2031436
$126.31List $162.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiCN
Description
The Walter-Prototyp 5603127 is a Metric Powdered Metal Standard Hand tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit6HX
Coating finishTiCN
Flute directionRight Hand
MaterialPowdered Metal
Neck length1.5350
Number of flutes4
Overall length7.8740
Reduced shankYes
Shank diameter (mm)10.00
Square size (mm)8.00
Tap typeStandard Hand
Thread directionRight Hand
Thread length0.7874
Thread size (mm)M10x1.5
Thread standardMetric
