Walter-Prototyp

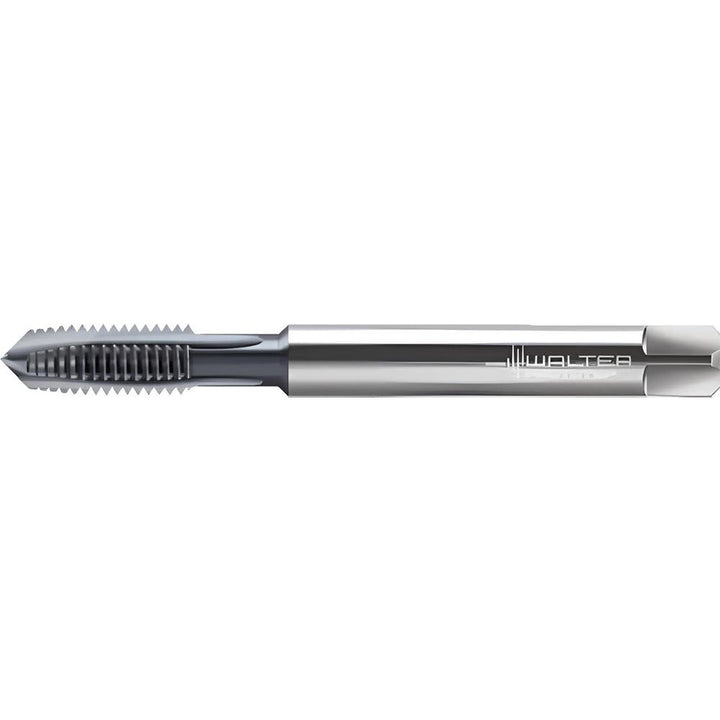

#4-40 UNC HSS-E-PM Spiral Point Tap, TiCN - Walter-Prototyp 5934160
MFR# 5934160Series A2220766
$37.62List $48.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
CoatingTiCN
Description
The Walter-Prototyp 5934160 is a #4-40 UNC HSS-E-PM Spiral Point tap with a TiCN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E-PM
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium
Neck length0.0512
Number of flutes2
Overall length in1-7/8
OversizeNo
Shank diameter0.1410
Square size (mm)2.79
StyleSpiral Point
Threads per inch40
Thread directionRight Hand
Thread length0.3940
Thread pitch0.025
Thread size in#4-40
Thread standardUNC
