Walter-Prototyp
5/8-24 UNEF Cobalt Tap - Walter-Prototyp 6149499
MFR# 6149499Series P233602
$122.94List $157.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-24
Description

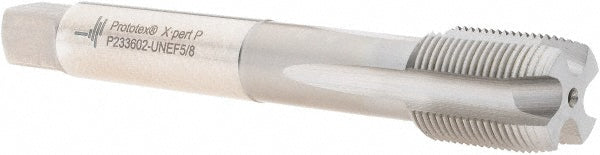

The Walter-Prototyp 6149499 is a 5/8-24 UNEF Cobalt tap. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Glass & Carbon Fibre Reinforced Plastic; Graphite; Non-Ferrous Metal; Plastic; Steel
Material gradeM35
Neck length1.1417
Number of flutes4
Overall length3.9370
OversizeNo
Shank diameter0.4724
Square size (mm)9.00
Threads per inch24
Thread directionRight Hand
Thread length0.8268
Thread size in5/8-24
Thread standardUNEF
