Walter-Prototyp

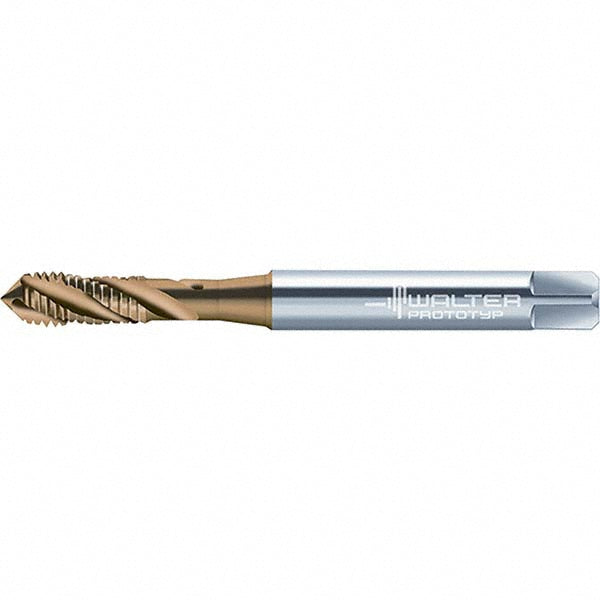

M3x0.5 Metric Cobalt Tap, TiN - Walter-Prototyp 6149757
MFR# 6149757Series M2051305
$49.93List $64.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiN
Description
The Walter-Prototyp 6149757 is a Metric Cobalt tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationCast Steel; Gray Cast Iron; Malleable Cast Iron; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Material gradeM35
Neck length0.4724
Number of flutes3
Overall length2.2047
OversizeNo
Primary workpiece materialSteel; Stainless Steel
Shank diameter0.1378
Square length0.2360
Square size0.1060
Tapping depth0.7087
Thread directionRight Hand
Thread length0.2362
Thread pitch (mm)0.50
Thread size (mm)M3x0.5
Thread standardMetric
