Walter-Prototyp

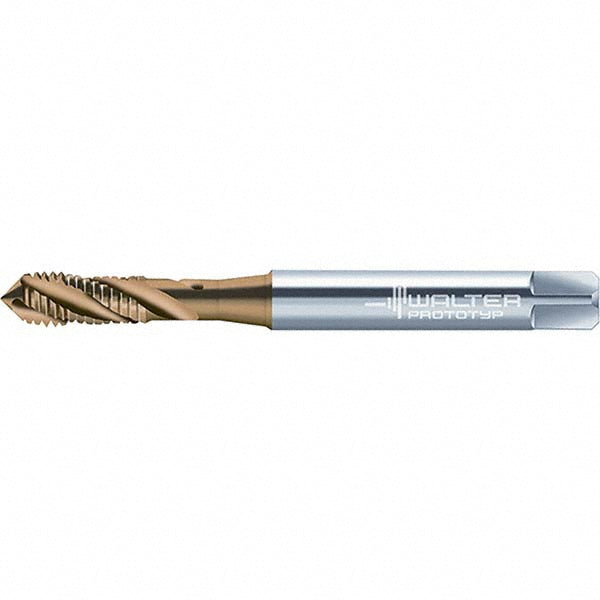

M8x1.25 Metric Cobalt Tap, TiN - Walter-Prototyp 6149761
MFR# 6149761Series M2051305
$71.42List $91.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiN
Description
The Walter-Prototyp 6149761 is a Metric Cobalt tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationCast Steel; Gray Cast Iron; Malleable Cast Iron; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Material gradeM35
Neck length0.9055
Number of flutes3
Overall length3.5433
OversizeNo
Primary workpiece materialSteel; Stainless Steel
Shank diameter0.3150
Square length0.3540
Square size0.2440
Tapping depth1.3780
Thread directionRight Hand
Thread length0.4724
Thread pitch (mm)1.25
Thread size (mm)M8x1.25
Thread standardMetric
