Walter-Prototyp

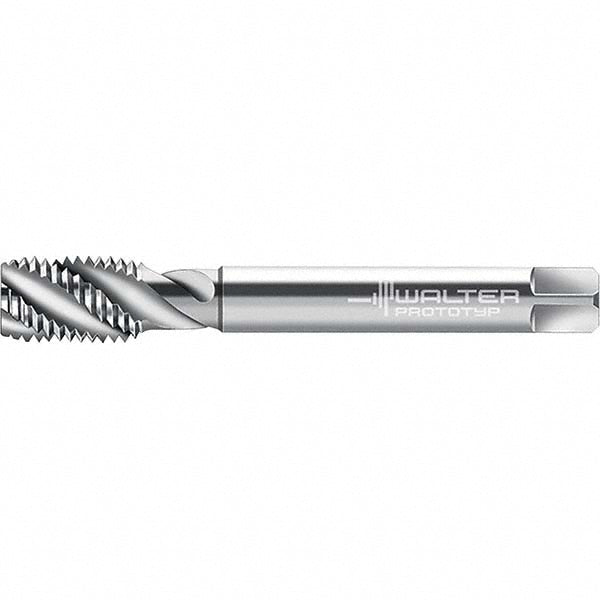

M10x1.5 Metric Cobalt Tap, Straw - Walter-Prototyp 6244553
MFR# 6244553Series P20569
$71.48List $91.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingStraw
Description
The Walter-Prototyp 6244553 is a Metric Cobalt tap with a Straw finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishStraw
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum; Cast Steel; Fiber-Reinforced Plastic; Graphite; Non-Ferrous Metal; Plastic; Steel
Material gradeM35
Number of flutes3
Overall length3.9370
OversizeNo
Primary workpiece materialSteel; Aluminum & Non-Ferrous; CFRP Materials
Shank diameter0.2756
Square length0.3150
Square size0.2170
Tapping depth3.0310
Thread directionRight Hand
Thread length0.5906
Thread pitch (mm)1.50
Thread size (mm)M10x1.5
Thread standardMetric
