Walter-Prototyp

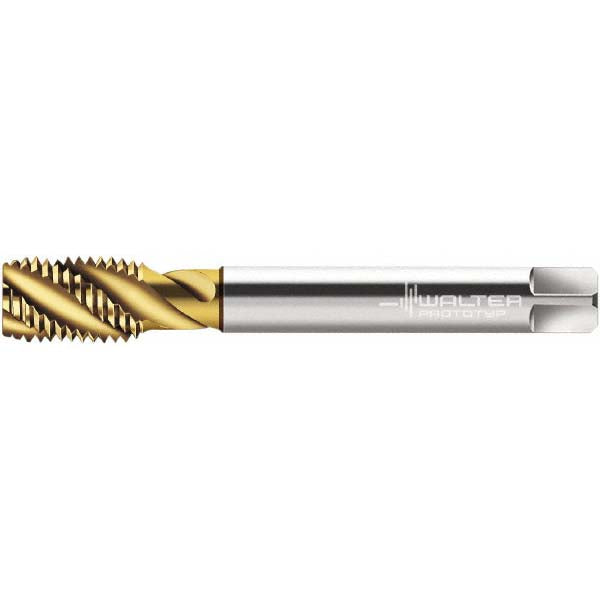

M20x2.5 Metric Cobalt Tap, TiN - Walter-Prototyp 6244572
MFR# 6244572Series P2056905
$187.78List $240.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiN
Description
The Walter-Prototyp 6244572 is a Metric Cobalt tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum; Cast Steel; Fiber-Reinforced Plastic; Graphite; Non-Ferrous Metal; Plastic; Steel
Material gradeM35
Neck length2.9528
Number of flutes4
Overall length5.5118
OversizeNo
Primary workpiece materialSteel; Aluminum & Non-Ferrous; CFRP Materials
Shank diameter0.6299
Square length0.5910
Square size0.4720
Tapping depth3.9370
Thread directionRight Hand
Thread length0.9843
Thread pitch (mm)2.50
Thread size (mm)M20x2.5
Thread standardMetric
