Walter-Prototyp

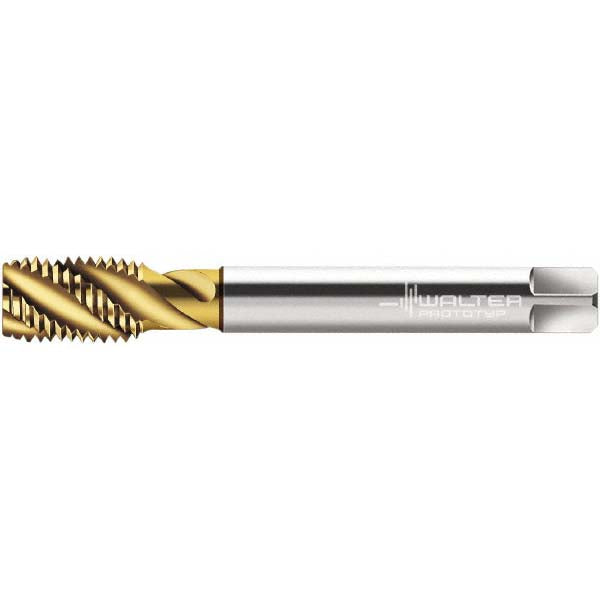

M12x1.25 Metric Fine Cobalt Tap, TiN - Walter-Prototyp 6244631
MFR# 6244631Series P2156905
$120.41List $154.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiN
Description
The Walter-Prototyp 6244631 is a Metric Fine Cobalt tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum; Cast Steel; Fiber-Reinforced Plastic; Graphite; Non-Ferrous Metal; Plastic; Steel
Material gradeM35
Neck length1.1417
Number of flutes4
Overall length3.9370
OversizeNo
Primary workpiece materialSteel; Aluminum & Non-Ferrous; CFRP Materials
Shank diameter0.3543
Square length0.3940
Square size0.2760
Tapping depth1.6535
Thread directionRight Hand
Thread length0.5118
Thread pitch (mm)1.25
Thread size (mm)M12x1.25
Thread standardMetric Fine
