Walter-Prototyp

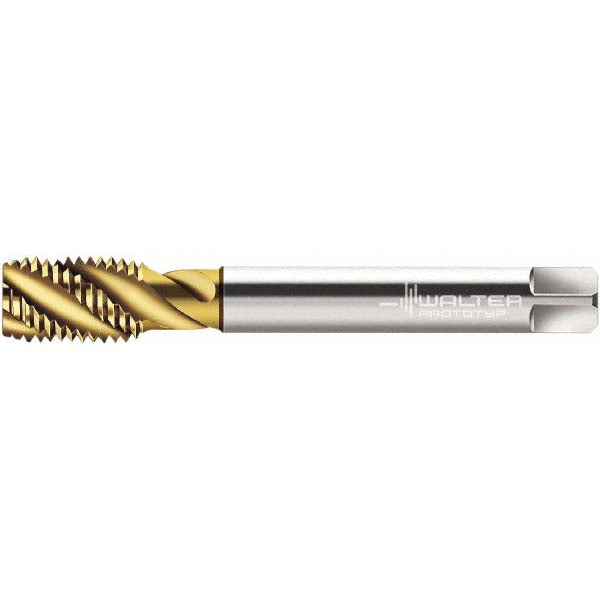

M16x1.5 Metric Fine Cobalt Tap, TiN - Walter-Prototyp 6244684
MFR# 6244684Series P2158905
$154.95List $198.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiN
Description
The Walter-Prototyp 6244684 is a Metric Fine Cobalt tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6G
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum; Cast Steel; Fiber-Reinforced Plastic; Graphite; Non-Ferrous Metal; Plastic; Steel
Material gradeM35
Neck length1.3780
Number of flutes4
Overall length3.9370
OversizeNo
Primary workpiece materialSteel; Aluminum & Non-Ferrous; CFRP Materials
Shank diameter0.4724
Square length0.4720
Square size0.3540
Tapping depth1.9685
Thread directionRight Hand
Thread length0.5906
Thread pitch (mm)1.50
Thread size (mm)M16x1.5
Thread standardMetric Fine
