Walter-Prototyp
5/8-24 UNEF Cobalt Tap, Straw - Walter-Prototyp 6244777
MFR# 6244777Series P235692
$135.58List $173.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-24
CoatingStraw
Description

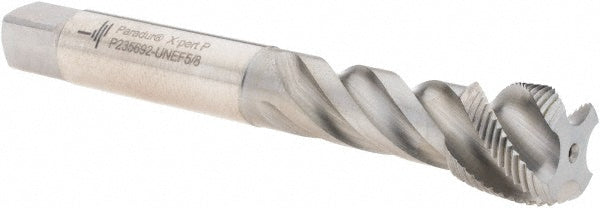

The Walter-Prototyp 6244777 is a 5/8-24 UNEF Cobalt tap with a Straw finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishStraw
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum; Cast Steel; Fiber-Reinforced Plastic; Graphite; Non-Ferrous Metal; Plastic; Steel
Material gradeM35
Neck length1.3780
Number of flutes4
Overall length3.9370
OversizeNo
Primary workpiece materialSteel; Aluminum & Non-Ferrous; CFRP Materials
Shank diameter0.4724
Square length0.4720
Square size0.3540
Tapping depth1.9685
Threads per inch24
Thread directionRight Hand
Thread length0.5906
Thread size in5/8-24
Thread standardUNEF
