Walter-Prototyp

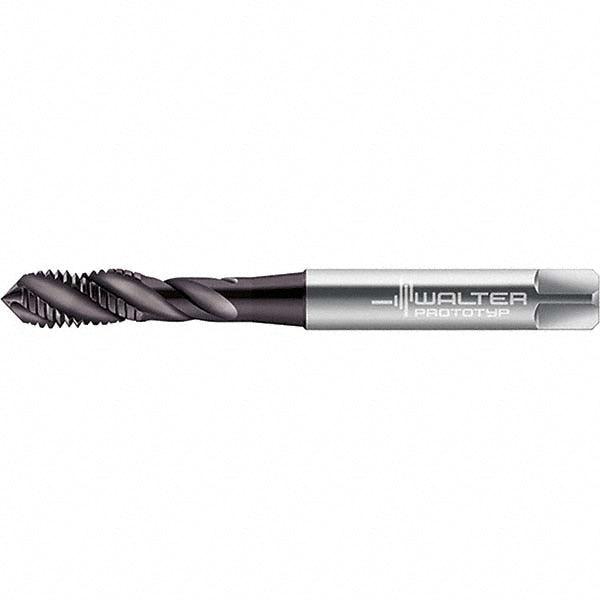

M8x1.25 Metric Powdered Metal Tap, Proprietary - Walter-Prototyp 6245538
MFR# 6245538Series EP2051302
$94.31List $120.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingProprietary
Description
The Walter-Prototyp 6245538 is a Metric Powdered Metal tap with a Proprietary finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6HX
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length0.9055
Number of flutes3
Overall length3.5433
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3150
Square length0.3540
Square size0.2440
Tapping depth1.3780
Thread directionRight Hand
Thread length0.4724
Thread pitch (mm)1.25
Thread size (mm)M8x1.25
Thread standardMetric
