Walter-Prototyp
M16x2 Metric Powdered Metal Tap, Proprietary - Walter-Prototyp 6245608
MFR# 6245608Series EP2056382
$178.52List $228.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingProprietary
Description

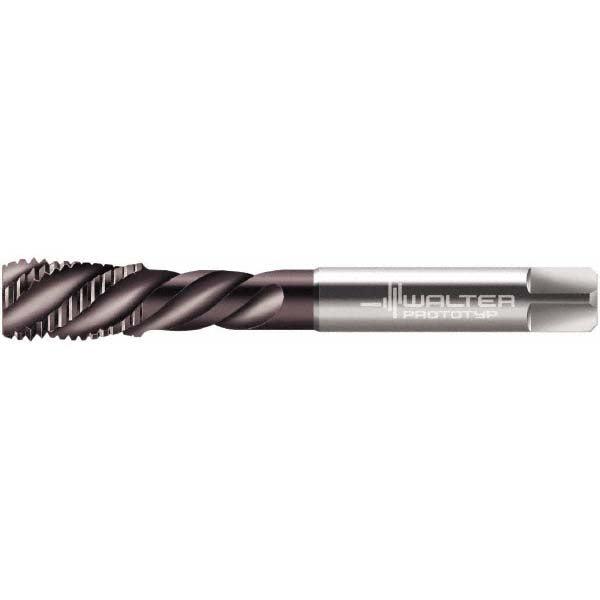

The Walter-Prototyp 6245608 is a Metric Powdered Metal tap with a Proprietary finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6HX
Coating finishProprietary
Coolant throughNo
Flute directionLeft Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length1.3780
Number of flutes4
Overall length4.3307
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4724
Square length0.4720
Square size0.3540
Tapping depth2.1654
Thread directionLeft Hand
Thread length0.7874
Thread pitch (mm)2.00
Thread size (mm)M16x2
Thread standardMetric
