Walter-Prototyp

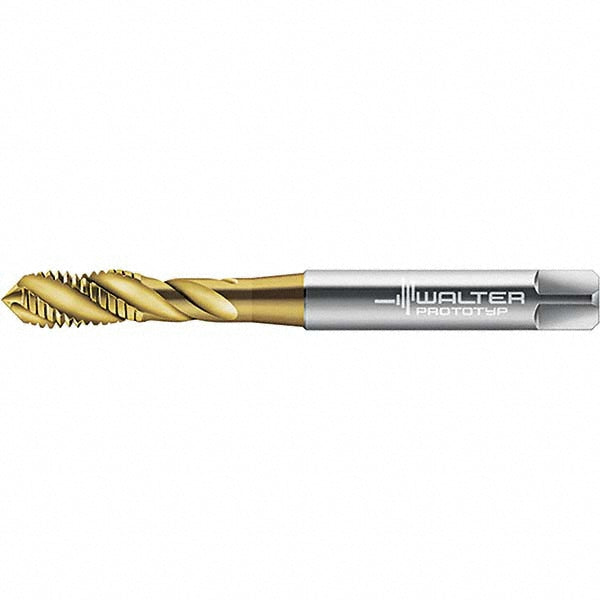

M10x1.5 Metric Powdered Metal Tap, TiN - Walter-Prototyp 6245638
MFR# 6245638Series EP2053305
$102.73List $131.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiN
Description
The Walter-Prototyp 6245638 is a Metric Powdered Metal tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6GX
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length0.9449
Number of flutes3
Overall length3.9370
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3937
Square length0.4330
Square size0.3150
Tapping depth1.5354
Thread directionRight Hand
Thread length0.5906
Thread pitch (mm)1.50
Thread size (mm)M10x1.5
Thread standardMetric
