Walter-Prototyp

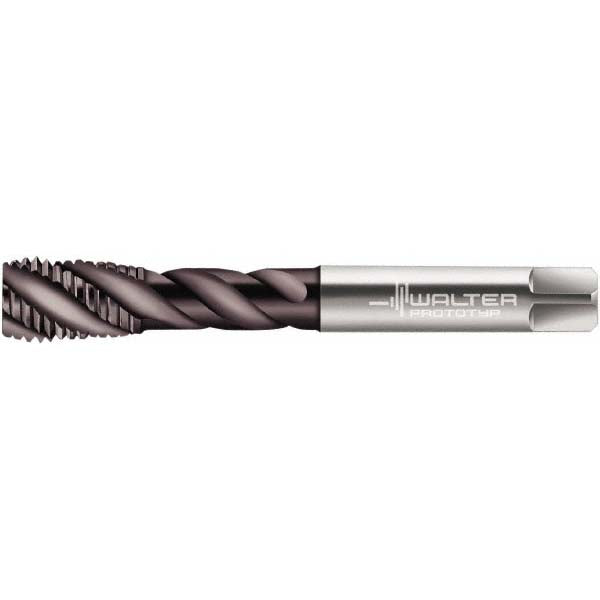

M20x1.5 Metric Fine Powdered Metal Tap, Proprietary - Walter-Prototyp 6245652
MFR# 6245652Series EP2156302
$261.04List $334.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingProprietary
Description
The Walter-Prototyp 6245652 is a Metric Fine Powdered Metal tap with a Proprietary finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6HX
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length1.7913
Number of flutes4
Overall length4.9213
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.6299
Square length0.5910
Square size0.4720
Tapping depth2.4606
Thread directionRight Hand
Thread length0.6693
Thread pitch (mm)1.50
Thread size (mm)M20x1.5
Thread standardMetric Fine
