Walter-Prototyp
1/4-20 UNC Powdered Metal Tap, Hardlube - Walter-Prototyp 6245709
MFR# 6245709Series AEP2251302
$75.44List $96.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingHardlube
Description

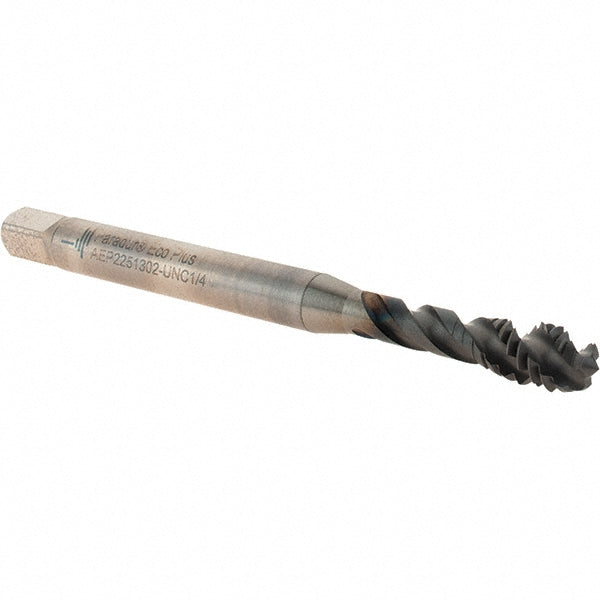

The Walter-Prototyp 6245709 is a 1/4-20 UNC Powdered Metal tap with a Hardlube finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishHardlube
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length0.6810
Number of flutes3
Overall length3.1500
OversizeNo
Shank diameter0.2550
Square size0.1910
Tapping depth1.0750
Threads per inch20
Thread directionRight Hand
Thread length0.3940
Thread size in1/4-20
Thread standardUNC
