Walter-Prototyp

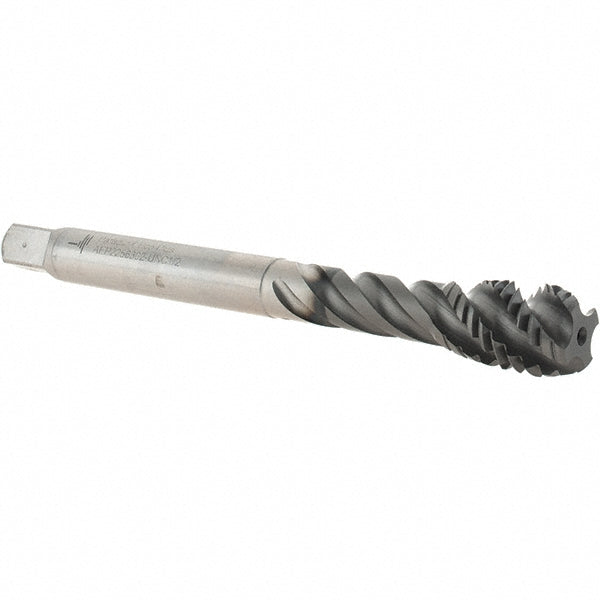

1/2-13 UNC Powdered Metal Tap, Proprietary - Walter-Prototyp 6245712
MFR# 6245712Series AEP2256302
$138.94List $178.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/2-13
CoatingProprietary
Description
The Walter-Prototyp 6245712 is a 1/2-13 UNC Powdered Metal tap with a Proprietary finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length0.8268
Number of flutes4
Overall length4.3310
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3670
Tapping depth1.5354
Thread directionRight Hand
Thread length0.7090
Thread size in1/2-13
Thread standardUNC
