Walter-Prototyp

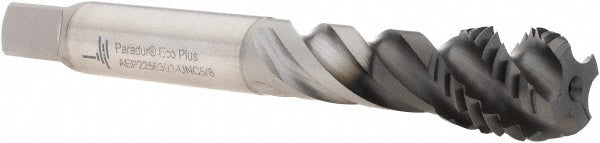

5/8-11 UNC Powdered Metal Tap, Hardlube - Walter-Prototyp 6245713
MFR# 6245713Series AEP2256302
$194.53List $245.16
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
CoatingHardlube
Description
The Walter-Prototyp 6245713 is a 5/8-11 UNC Powdered Metal tap with a Hardlube finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishHardlube
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length1.6732
Number of flutes4
Overall length4.3310
OversizeNo
Shank diameter0.4800
Square size0.3600
Tapping depth2.4606
Threads per inch11
Thread directionRight Hand
Thread length0.7870
Thread size in5/8-11
Thread standardUNC
