Walter-Prototyp

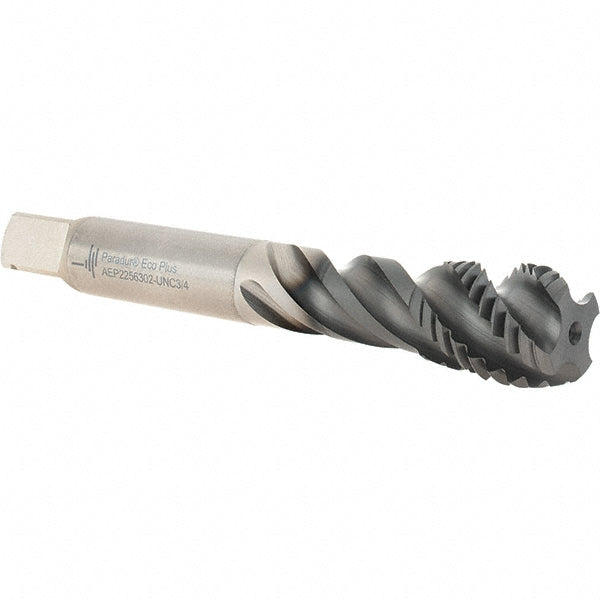

3/4-10 UNC Powdered Metal Tap, Proprietary - Walter-Prototyp 6245714
MFR# 6245714Series AEP2256302
$222.30List $285.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingProprietary
Description
The Walter-Prototyp 6245714 is a 3/4-10 UNC Powdered Metal tap with a Proprietary finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length0.7677
Number of flutes4
Overall length4.9210
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.5900
Square size0.4420
Tapping depth1.7520
Threads per inch10
Thread directionRight Hand
Thread length0.9840
Thread size in3/4-10
Thread standardUNC
