Walter-Prototyp

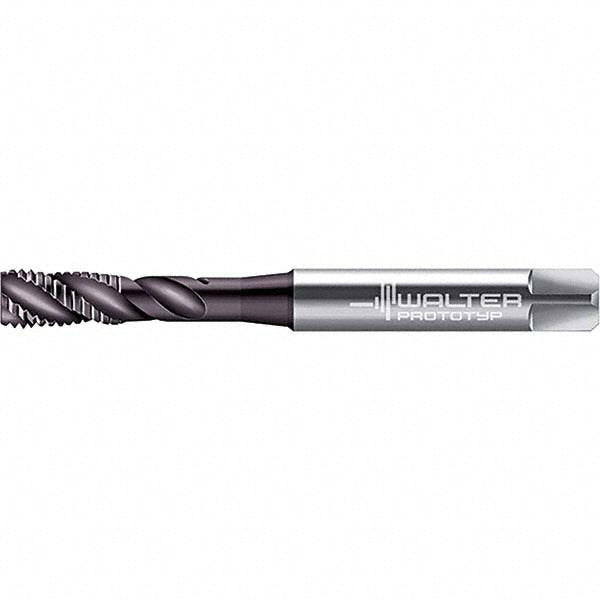

3/8-16 UNC Powdered Metal Tap, Proprietary - Walter-Prototyp 6245720
MFR# 6245720Series AEP2251312
$147.36List $189.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingProprietary
Description
The Walter-Prototyp 6245720 is a 3/8-16 UNC Powdered Metal tap with a Proprietary finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishProprietary
Coolant throughYes
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length0.9440
Number of flutes3
Overall length3.9370
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3810
Square size0.2860
Tapping depth1.5350
Threads per inch16
Thread directionRight Hand
Thread length0.5910
Thread size in3/8-16
Thread standardUNC
