Walter-Prototyp
1/4-28 UNF Powdered Metal Tap, Proprietary - Walter-Prototyp 6245723
MFR# 6245723Series AEP2351302
$82.94List $106.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingProprietary
Description

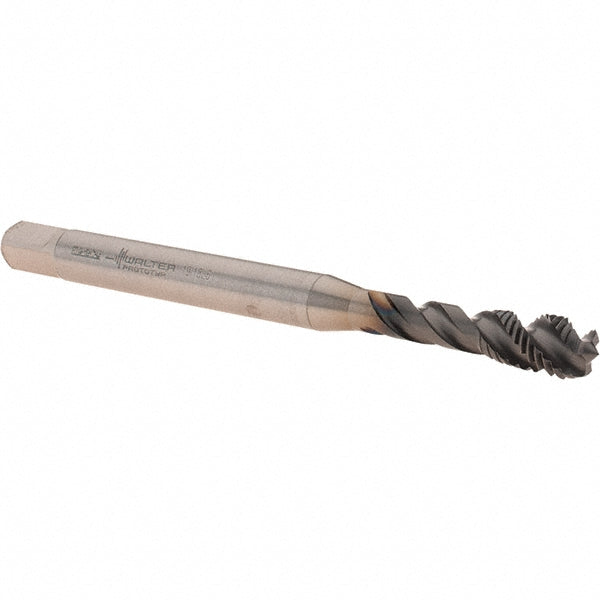

The Walter-Prototyp 6245723 is a 1/4-28 UNF Powdered Metal tap with a Proprietary finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length0.6260
Number of flutes3
Overall length3.1500
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.2550
Tapping depth1.0200
Thread directionRight Hand
Thread length0.3940
Thread size in1/4-28
Thread standardUNF
