Walter-Prototyp
3/4-16 UNF Powdered Metal Tap, Proprietary - Walter-Prototyp 6245729
MFR# 6245729Series AEP2356302
$245.04List $314.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingProprietary
Description

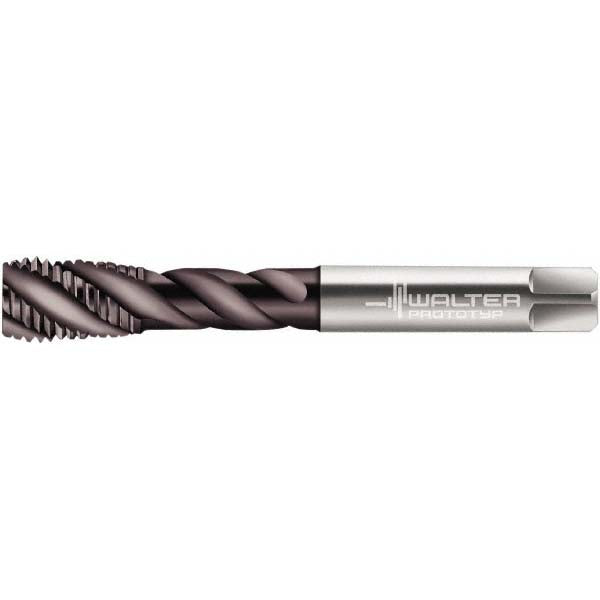

The Walter-Prototyp 6245729 is a 3/4-16 UNF Powdered Metal tap with a Proprietary finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Neck length1.4961
Number of flutes4
Overall length4.3307
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.5900
Square length0.6890
Square size0.4420
Tapping depth2.1654
Threads per inch16
Thread directionRight Hand
Thread length0.6693
Thread size in3/4-16
Thread standardUNF
