Walter-Prototyp

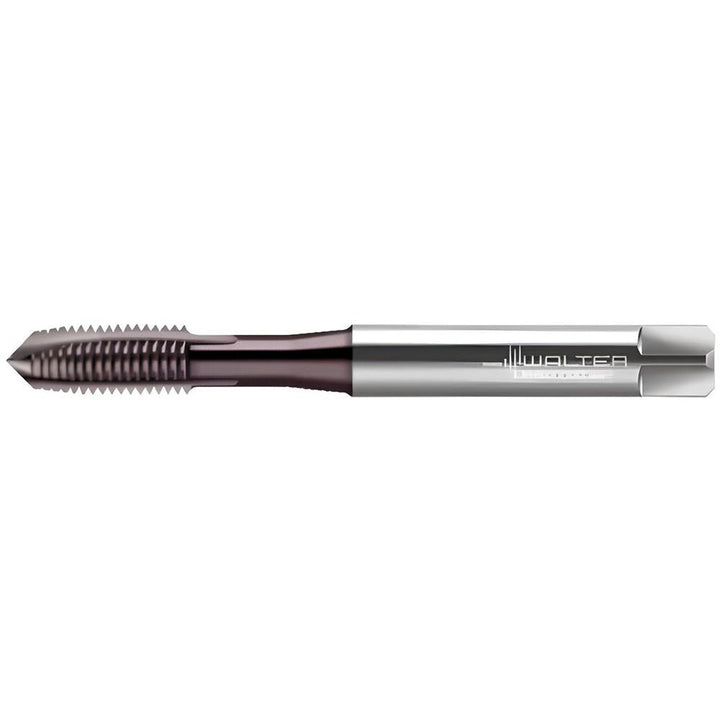

5/16-24 UNF HSS-E-PM Spiral Point Tap, THL - Walter-Prototyp 6432609
MFR# 6432609Series AEP2321002
$94.31List $120.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingTHL
Description
The Walter-Prototyp 6432609 is a 5/16-24 UNF HSS-E-PM Spiral Point tap with a THL finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTHL
Coolant throughNo
Interrupted threadNo
MaterialHSS-E-PM
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Measurement typeDecimal Inch
Neck length0.6690
Number of flutes3
Overall length3.5430
OversizeNo
Shank diameter0.3180
Square size (mm)6.05
StyleSpiral Point
Threads per inch24
Thread directionRight Hand
Thread length0.7090
Thread pitch0.0417
Thread size in5/16-24
Thread standardUNF
