Walter-Prototyp

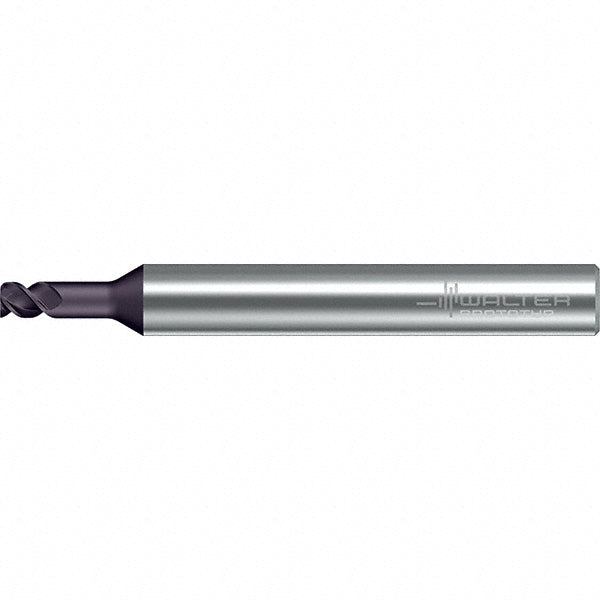

0.1180" 3-Flute Solid Carbide Corner Radius End Mill, TiAlN - Walter-Prototyp 6579340

MFR# 6579340Cat# MC726-03.0A3A008JSeries MC726

$75.04List $96.24 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingTiAlN

Description

The Walter-Prototyp 6579340 is a 0.1180 3-flute Solid Carbide (WK40TF) corner radius end mill with a TiAlN finish for longer tool life. Suited for steel. Series MC726.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Corner radius0.0030

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut1.5000

Length typeExtended

Manufacturers catalog numberMC726-03.0A3A008J

Material applicationSteel

Material gradeWK40TF

Material removal typeRoughing & Finishing

Mill diameter0.1180

Mill diameter tolerancee8

Neck diameter (mm)3.00

Number of flutes3

Overall length (mm)50.00mm

PitchNormal

Primary workpiece materialSteel

Reach length (mm)14.00

Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium

Shank diameter (mm)6.00mm

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
