0.4720in" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Walter-Prototyp 6579484

Walter-Prototyp

0.4720in" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Walter-Prototyp 6579484

MFR# 6579484Series MC326

$246.72List $316.44 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

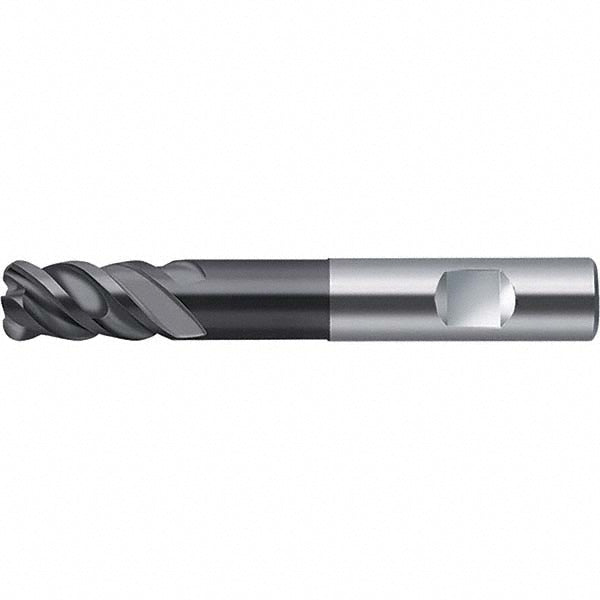

The Walter-Prototyp 6579484 is a 0.4720in 4-flute Solid Carbide corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series MC326.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Corner radius0.0980
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut1.5000in
Length typeLong
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material removal typeRoughing & Finishing
Mill diameter0.4720in
Mill diameter toleranceh9
Neck diameter0.4490in
Number of flutes4
Overall length (mm)83.00mm
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length1.4200
Secondary workpiece materialCast Iron; Hard Material; Stainless Steel
Shank diameter (mm)12.00mm
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
