Walter-Prototyp

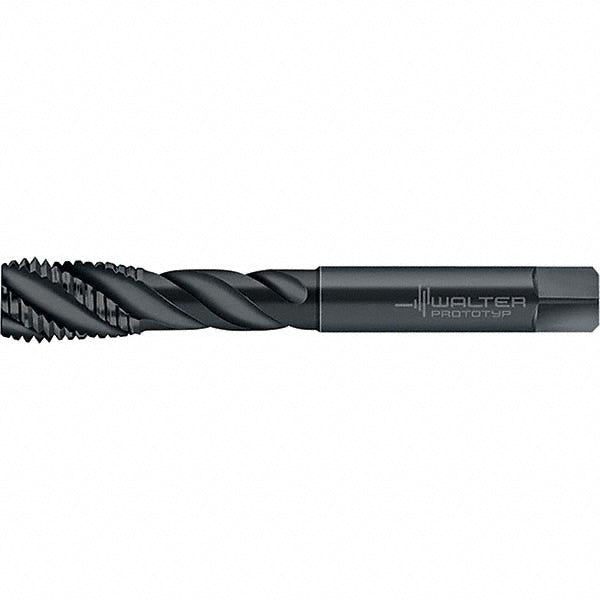

M12x1.75 Metric Powdered Metal Tap, Vaporisiert - Walter-Prototyp 6714342
MFR# 6714342Series TC142
$117.97List $132.83
Save 11%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingVaporisiert
Description
The Walter-Prototyp 6714342 is a Metric Powdered Metal tap with a Vaporisiert finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6HX
Coating finishVaporisiert
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialPowdered Metal
Material applicationStainless Steel; Steel
Material gradeWY80FC
Number of flutes3
Overall length4.4060
OversizeNo
Primary workpiece materialSteel; Stainless Steel
Shank diameter0.3540
Square length0.3940
Square size0.2760
Tapping depth3.2680
Thread directionRight Hand
Thread length0.6300
Thread pitch (mm)1.75
Thread size (mm)M12x1.75
Thread standardMetric
