Walter-Prototyp

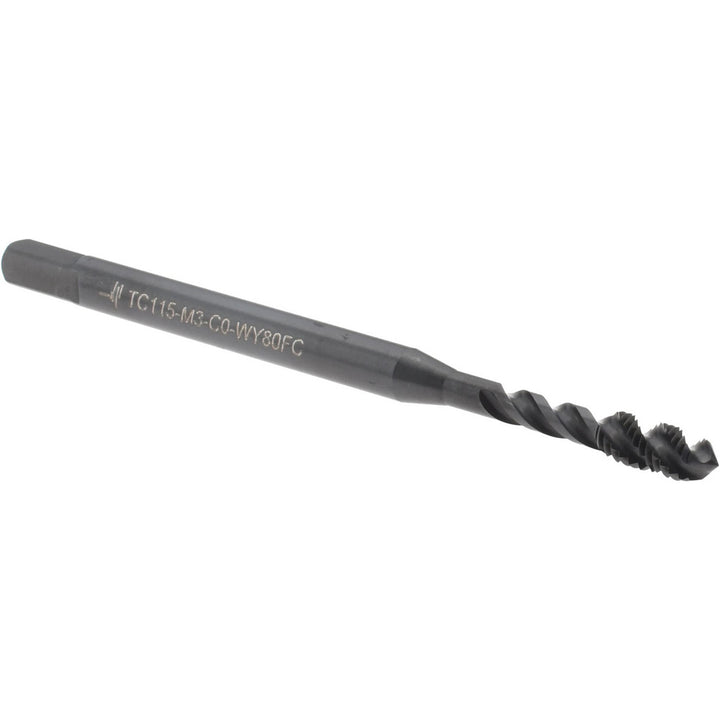

M3x0.5 DIN 371 High-Speed Steel Tap, Steam Oxide - Walter-Prototyp 6743384
MFR# 6743384Series TC115-M-C0
$18.43List $23.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The Walter-Prototyp 6743384 is a DIN 371 High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferSemi-Bottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Helix angle45
MaterialHigh-Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Material gradeM35
Number of flutes3
Overall length2.2540
Shank diameter0.1380
Square length0.2362
Thread directionRight Hand
Thread length0.2360
Thread size (mm)M3x0.5
Thread standardDIN 371
