Walter-Prototyp

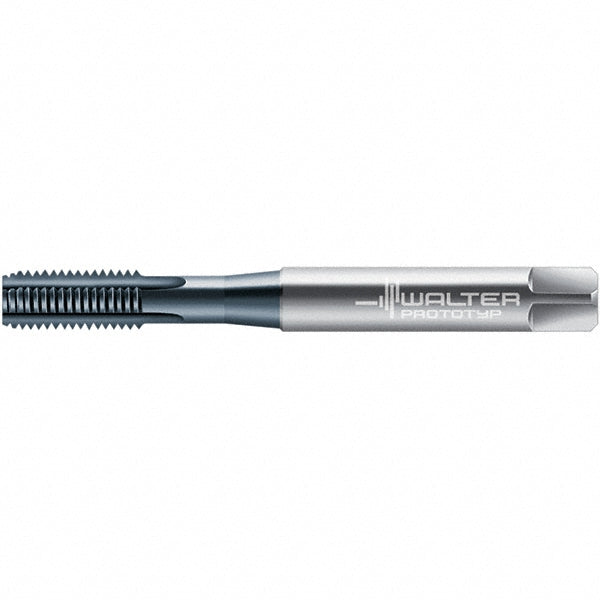

M6x1 DIN 371 High-Speed Steel Machine Tap, TiCN - Walter-Prototyp 6826955
MFR# 6826955Series E2031456
$82.44List $105.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiCN
Description
The Walter-Prototyp 6826955 is a DIN 371 High-Speed Steel Machine tap with a TiCN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit6HX
Coating finishTiCN
Coolant throughYes
MaterialHigh-Speed Steel
Number of flutes4
Overall length3.1500
Shank diameter0.2360
Square length0.3150
Square size0.1930
Tapping depth1.1810
Tap typeMachine
Thread directionRight Hand
Thread length0.5910
Thread pitch (mm)1.00
Thread size (mm)M6x1
Thread standardDIN 371
