Walter-Prototyp

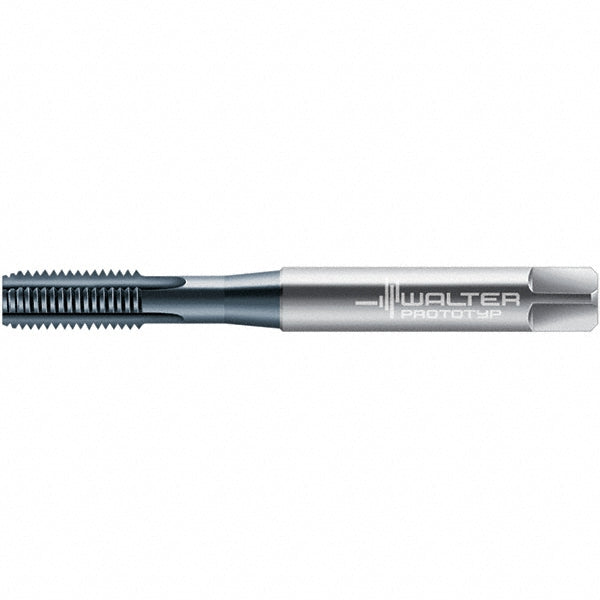

M8x1.25 DIN 371 High-Speed Steel Machine Tap, TiCN - Walter-Prototyp 6826956
MFR# 6826956Series E2031456
$97.68List $125.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiCN
Description
The Walter-Prototyp 6826956 is a DIN 371 High-Speed Steel Machine tap with a TiCN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit6HX
Coating finishTiCN
Coolant throughYes
MaterialHigh-Speed Steel
Number of flutes4
Overall length3.5430
Shank diameter0.3150
Square length0.3543
Square size0.2440
Tapping depth1.3780
Tap typeMachine
Thread directionRight Hand
Thread length0.7090
Thread pitch (mm)1.25
Thread size (mm)M8x1.25
Thread standardDIN 371
