Walter-Prototyp

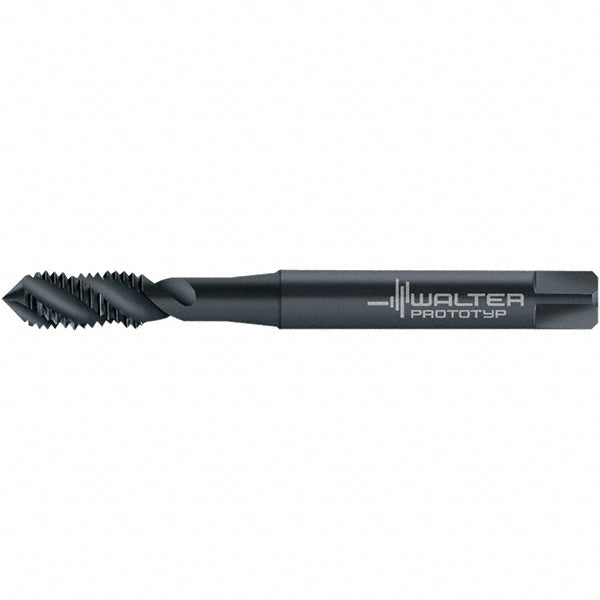

M18x1.5 DIN 374 Cobalt Tap, Vaporisiert - Walter-Prototyp 6958841
MFR# 6958841Series TC115-MF-L0
$61.80List $77.88
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingVaporisiert
Description
The Walter-Prototyp 6958841 is a DIN 374 Cobalt tap with a Vaporisiert finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishVaporisiert
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialCobalt
Material applicationCast Iron; Stainless Steel; Steel
Material gradeM35
Number of flutes4
Overall length4.3310
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.5510
Square length0.5512
Square size0.4330
Tapping depth2.5980
Thread directionRight Hand
Thread length0.6690
Thread pitch (mm)1.50
Thread size (mm)M18x1.5
Thread standardDIN 374
