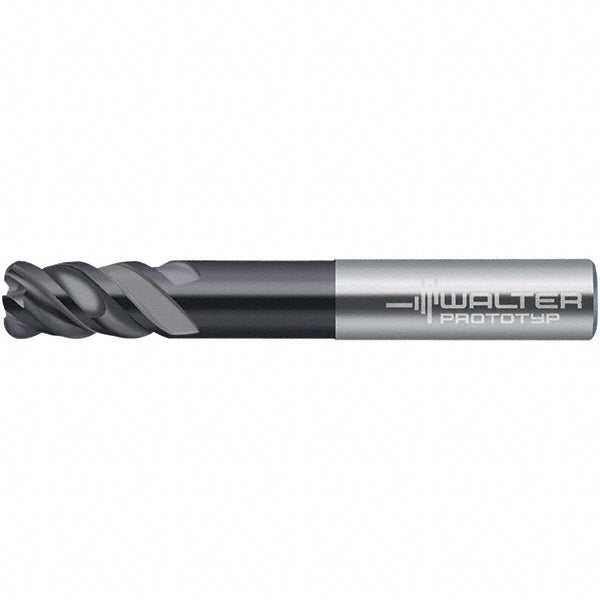

1/2in" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Walter-Prototyp 7092604

Walter-Prototyp

1/2in" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Walter-Prototyp 7092604

MFR# 7092604Cat# MC326.12.7A4L076CSeries MC326

$266.09List $341.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter-Prototyp 7092604 is a 1/2in 4-flute Solid Carbide (WK40TF) corner radius end mill with a TiAlN finish for longer tool life. Suited for steel. 1in length of cut, 4-3/4in overall length. Series MC326.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Corner radius0.0590
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1in
Length typeExtended
Manufacturers catalog numberMC326.12.7A4L076C
Material applicationSteel
Material gradeWK40TF
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter toleranceh9
Neck diameter0.4750in
Number of flutes4
Overall length in4-3/4in
PitchNormal
Primary workpiece materialSteel
Reach length in2-7/8
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
