Walter-Prototyp
M8x1.25 Metric High-Speed Steel-E-PM Tap, TiN - Walter-Prototyp 7427359
MFR# 7427359Series TC420
$165.84List $201.97
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description

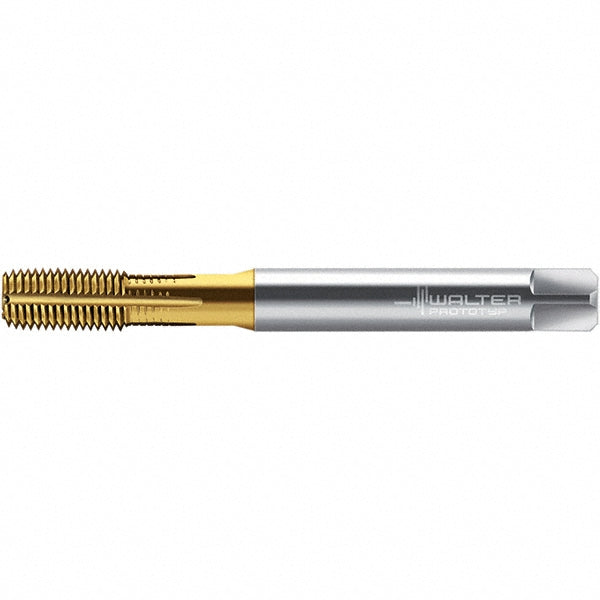

The Walter-Prototyp 7427359 is a Metric High-Speed Steel-E-PM tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughYes
Flute by diameter ratio3.5xD
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloy
Material application codeP; M; K; N; S
Material gradeWW60AD
Oil grooves5
Overall length3.5433
Shank diameter0.3150
Square size0.2441
Tapping depth1.3780
Thread directionRight Hand
Thread length0.4724
Thread size (mm)M8x1.25
Thread standardMetric
Trade nameTC420 Supreme
