Walter-Prototyp

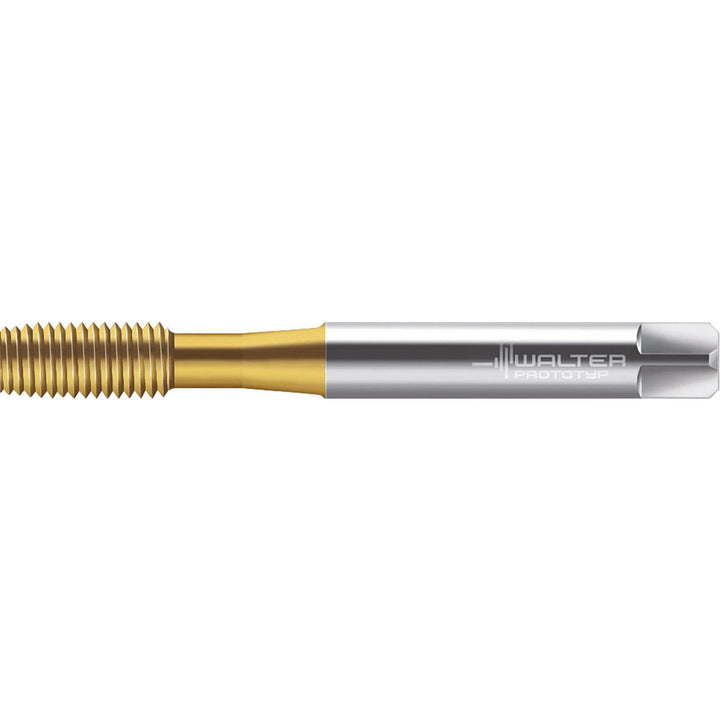

M3x0.5 Metric High-Speed Steel-E Tap, TiN - Walter-Prototyp 7427498
MFR# 7427498Series TC410
$51.61List $66.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Walter-Prototyp 7427498 is a Metric High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material application codeP; M; K; N; S
Material gradeWY80AD
Oil grooves4
Overall length2.2047
Shank diameter0.1378
Square size0.1100
Tapping depth0.7087
Thread directionRight Hand
Thread length0.3543
Thread size (mm)M3x0.5
Thread standardMetric
Trade nameTC410 Advance
