Walter-Prototyp

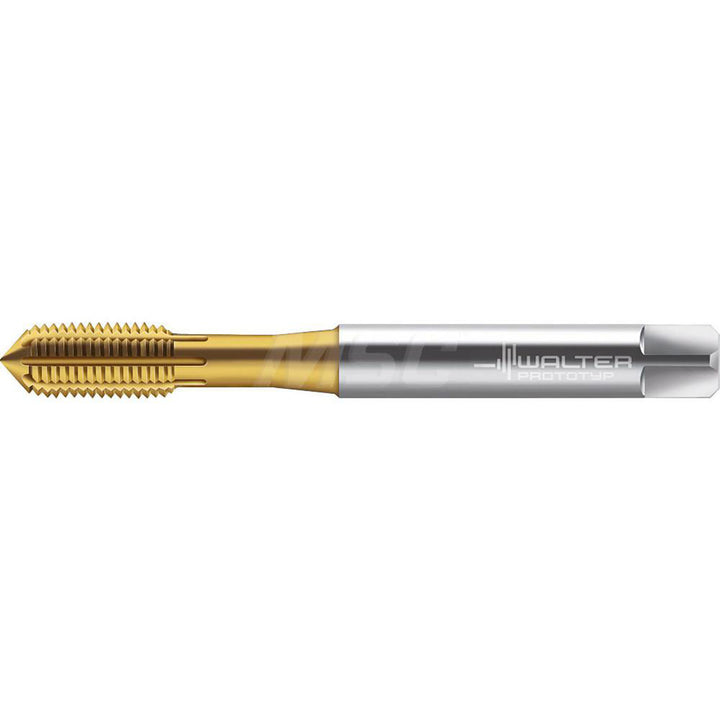

M2.5x0.45 Metric High-Speed Steel-E Tap, TiN - Walter-Prototyp 7427539
MFR# 7427539Series TC410
$69.21List $88.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Walter-Prototyp 7427539 is a Metric High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material application codeP; M; K; N; S
Material gradeWY80AD
Oil grooves3
Overall length1.9685
Shank diameter0.1102
Square size0.0827
Tapping depth0.5512
Thread directionRight Hand
Thread length0.3150
Thread size (mm)M2.5x0.45
Thread standardMetric
Trade nameTC410 Advance
