Walter-Prototyp

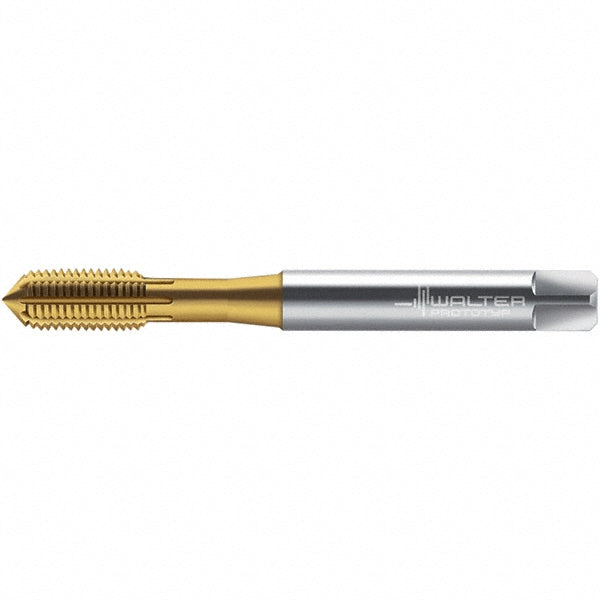

M4x0.7 Metric High-Speed Steel-E Tap, TiN - Walter-Prototyp 7427625
MFR# 7427625Series TC410
$66.76List $84.13
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Walter-Prototyp 7427625 is a Metric High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3.5xD
MaterialHigh-Speed Steel-E
Material application codeP; M; K; N; S
Material gradeWY80AD
Oil grooves5
Overall length2.4803
Shank diameter0.1772
Square size0.1339
Tapping depth0.8268
Thread directionRight Hand
Thread length0.4724
Thread size (mm)M4x0.7
Thread standardMetric
Trade nameTC410 Advance
