Walter-Prototyp

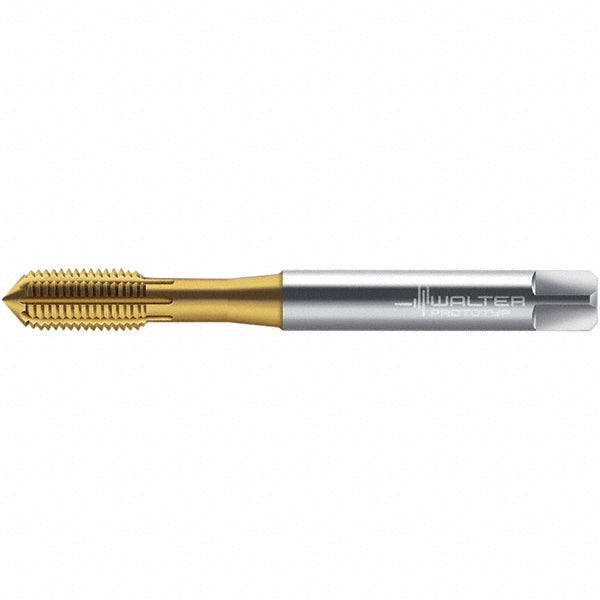

M6x1 Metric High-Speed Steel-E Tap, TiN - Walter-Prototyp 7427627
MFR# 7427627Series TC410
$75.38List $96.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Walter-Prototyp 7427627 is a Metric High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3.5xD
MaterialHigh-Speed Steel-E
Material application codeP; M; K; N; S
Material gradeWY80AD
Oil grooves5
Overall length3.1496
Shank diameter0.2362
Square size0.1929
Tapping depth1.1811
Thread directionRight Hand
Thread length0.5906
Thread size (mm)M6x1
Thread standardMetric
Trade nameTC410 Advance
