Walter-Prototyp
#2-56 UNC High-Speed Steel-E Tap, TiN - Walter-Prototyp 7427633
MFR# 7427633Series TC410
$75.88List $97.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#2-56
CoatingTiN
Description

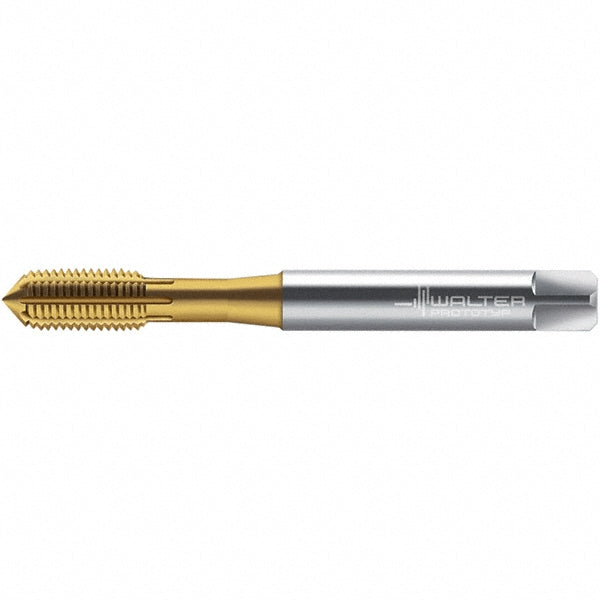

The Walter-Prototyp 7427633 is a #2-56 UNC High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3.5xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloy
Material application codeP; M; K; N; S
Material gradeWY80AD
Oil grooves3
Overall length1.7717
Shank diameter0.1102
Square size0.0827
Tapping depth0.4724
Thread directionRight Hand
Thread length0.2756
Thread size in#2-56
Thread standardUNC
Trade nameTC410 Advance
