Walter-Prototyp

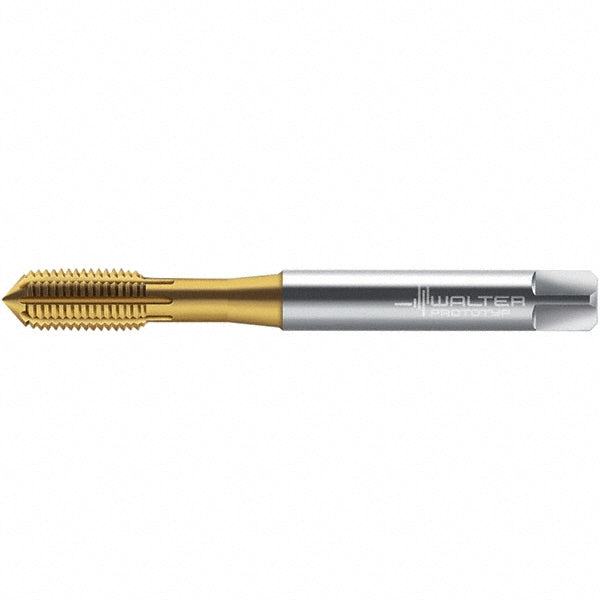

#10-32 UNF High-Speed Steel-E Tap, TiN - Walter-Prototyp 7427651
MFR# 7427651Series TC410
$72.51List $93.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-32
CoatingTiN
Description
The Walter-Prototyp 7427651 is a #10-32 UNF High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3.5xD
MaterialHigh-Speed Steel-E
Material application codeP; M; K; N; S
Material gradeWY80AD
Oil grooves5
Overall length2.7559
Shank diameter0.2362
Square size0.1929
Tapping depth0.9843
Thread directionRight Hand
Thread length0.5118
Thread size in#10-32
Thread standardUNF
Trade nameTC410 Advance
