Walter-Prototyp

0.3150" 5-Flute Solid Carbide Corner Radius End Mill, TiAlN - Walter-Prototyp 7496811

MFR# 7496811Series MD133

$146.53List $187.93 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5

MaterialSolid Carbide

CoatingTiAlN

Description

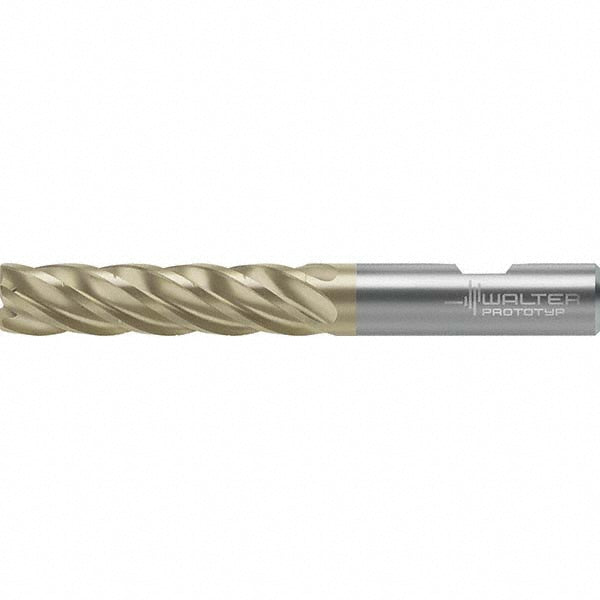

The Walter-Prototyp 7496811 is a 0.3150 5-flute Solid Carbide (WJ30RD) corner radius end mill with a TiAlN; TiAl finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series MD133.

Specifications

CentercuttingNo

ChipbreakerYes

Coating finishTiAlN

Coolant throughNo

Corner radius (mm)0.40

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleMedium

Length of cut3.0000

Length typeExtra Long

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Material gradeWJ30RD

Material removal typeRoughing & Finishing

Mill diameter0.3150

Mill diameter toleranceh10

Number of flutes5

Overall length (mm)80.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length1.3400

Secondary workpiece materialCast Iron

Shank diameter (mm)8.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
