Walter-Prototyp

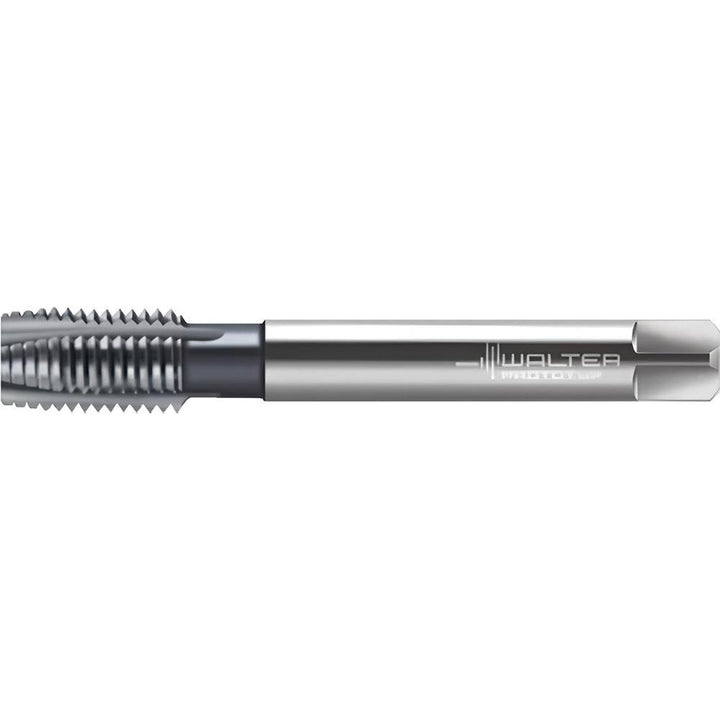

MF12x1.25 Metric Fine HSS-E-PM Spiral Point Tap, TiCN - Walter-Prototyp 7511525
MFR# 7511525Series 21266106
$149.05List $191.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiCN
Description
The Walter-Prototyp 7511525 is a Metric Fine HSS-E-PM Spiral Point tap with a TiCN finish. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit6H
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E-PM
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium
Neck length (mm)52.00
Number of flutes4
Overall length3.9370
OversizeNo
Shank diameter0.3540
Square size (mm)7.00
StyleSpiral Point
Threads per inch20.48
Thread directionRight Hand
Thread length0.8270
Thread pitch0.0490
Thread size (mm)MF12x1.25
Thread standardMetric Fine
