Walter-Prototyp
3/4-10 UNC Cobalt Tap, TiAlN - Walter-Prototyp 7557025
MFR# 7557025Series TC117
$194.30List $240.83
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingTiAlN
Description

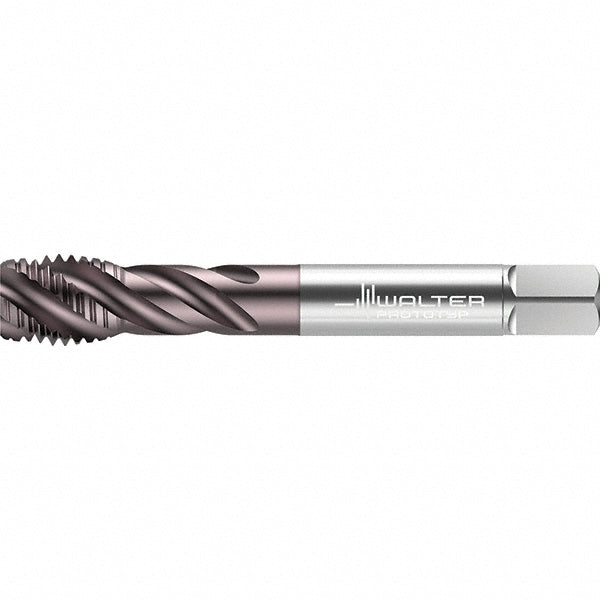

The Walter-Prototyp 7557025 is a 3/4-10 UNC Cobalt tap with a TiAlN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishTiAlN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
MaterialCobalt
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Material gradeWY80RG
Number of flutes4
Overall length (mm)125.00
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.5900
Square length0.6890
Square size0.4420
Tapping depth3.0510
Threads per inch10
Thread directionRight Hand
Thread length0.9840
Thread size in3/4-10
Thread standardUNC
