Walter-Prototyp

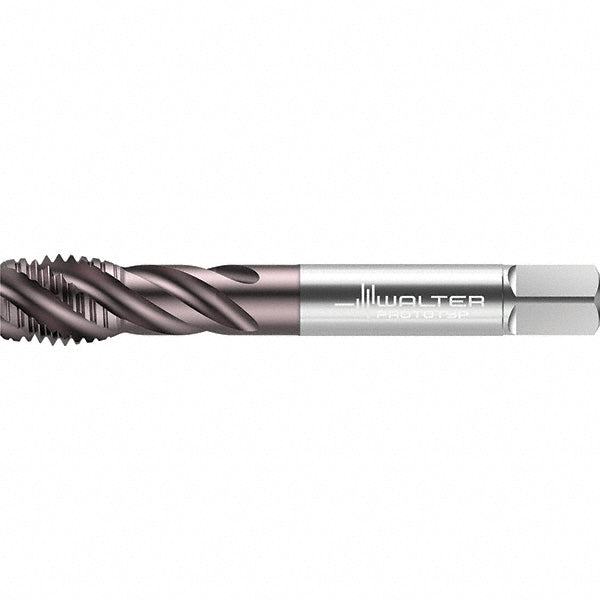

5/8-18 UNF Cobalt Tap, TiAlN - Walter-Prototyp 7557087
MFR# 7557087Series TC117
$156.07List $190.08
Save 17%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-18
CoatingTiAlN
Description
The Walter-Prototyp 7557087 is a 5/8-18 UNF Cobalt tap with a TiAlN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishTiAlN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
MaterialCobalt
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Material gradeWY80RG
Number of flutes4
Overall length (mm)100.00
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4800
Square length0.5630
Square size0.3600
Tapping depth2.1930
Threads per inch18
Thread directionRight Hand
Thread length0.5910
Thread size in5/8-18
Thread standardUNF
